Sausage Clipper

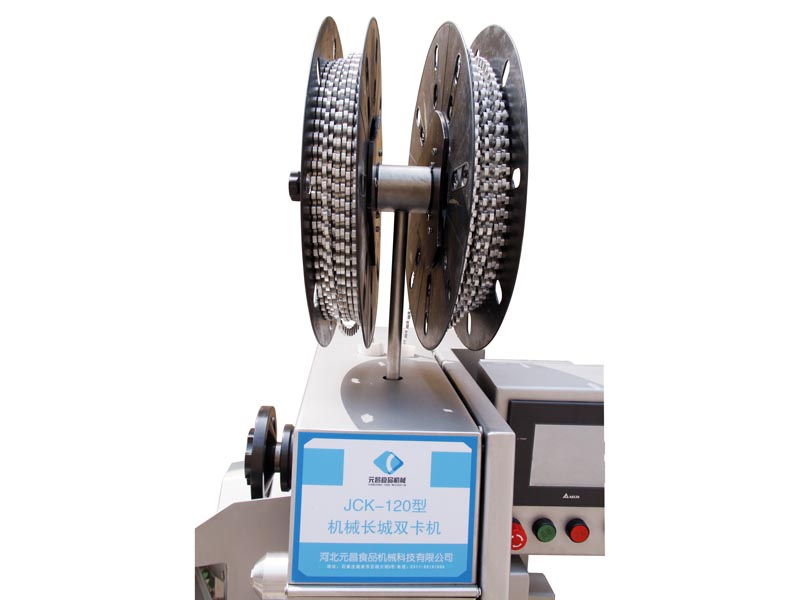

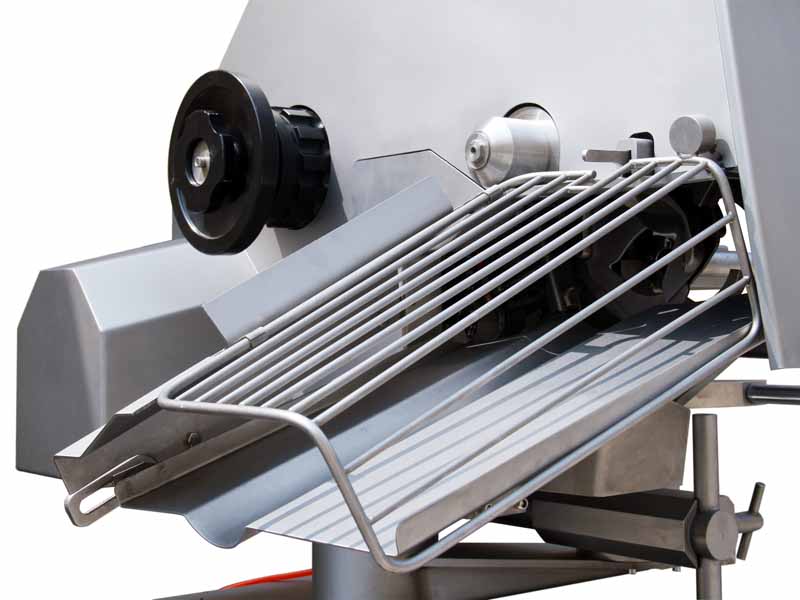

Automatic Mechanical Great-Wall Double Clipper JCK-120/130/160

YC Mechanism Automatic Double Clipper JCK-120 is connected mechanically and electrically to the any vacuum stuffer or pneumatic stuffer. The voiding separator provides portions of precise weight, which are clipped as single sausages or rings. Trend- setting safety standards are guaranteed with the two-handed trigger operation required to start the first clip.

YC Mechanism Automatic Double Clipper JCK-120 is connected mechanically and electrically to the any vacuum stuffer or pneumatic stuffer. The voiding separator provides portions of precise weight, which are clipped as single sausages or rings. Trend- setting safety standards are guaranteed with the two-handed trigger operation required to start the first clip.

Automatic Double Clipper JCK series built with the Japan Panasonic servo motor as the drive system, the man-machine interface from Taiwan and the Japan Mitsubishi PLC. It is designed with the state-of-the-art forced wire-feed mechanism, featuring precise and clear action.

Model Clip Speed(time/min)

Applicable Clip

Casing Range(mm) Power(kw)  Voltage(v)Weight(kg) Size(mm)
 JCK-120 120 15-6/15-7/15-8/15-9 32-90 2.7 380 370 980x880x1800
 JCK-130 100 15-6/15-7/15-8/15-9 32-130 2.7 380 420 1200x1320x2000
 JCK-160 80 18-6/18-7/18-8/18-9/18-10/18-11/18-12 50-160 3.5 380 960 1300x1360x2200

Advantages:

    Ranked as Top Leader in China in terms of productivity and equipment faults.

    Tough stainless steel Design construction guarantee extensive machine life.

    Ensures resistance to aggressive cleaning.

    Controlled electronically via a PLC and servo-frequency inverter.

    Easy touch means simple and convenient machine operation.

    Friendly user interface makes the machine control easier.

    Operator is quided intuitively through the flat menu structure with informative   and can easily control the complete machine at the touch of a finger.

    Programs set of parameters easily managed screen and settings speed up product change rapidly.
